BrightBar LM-700.-CDLT0165 / CDLT0166 / CDLT0167 /

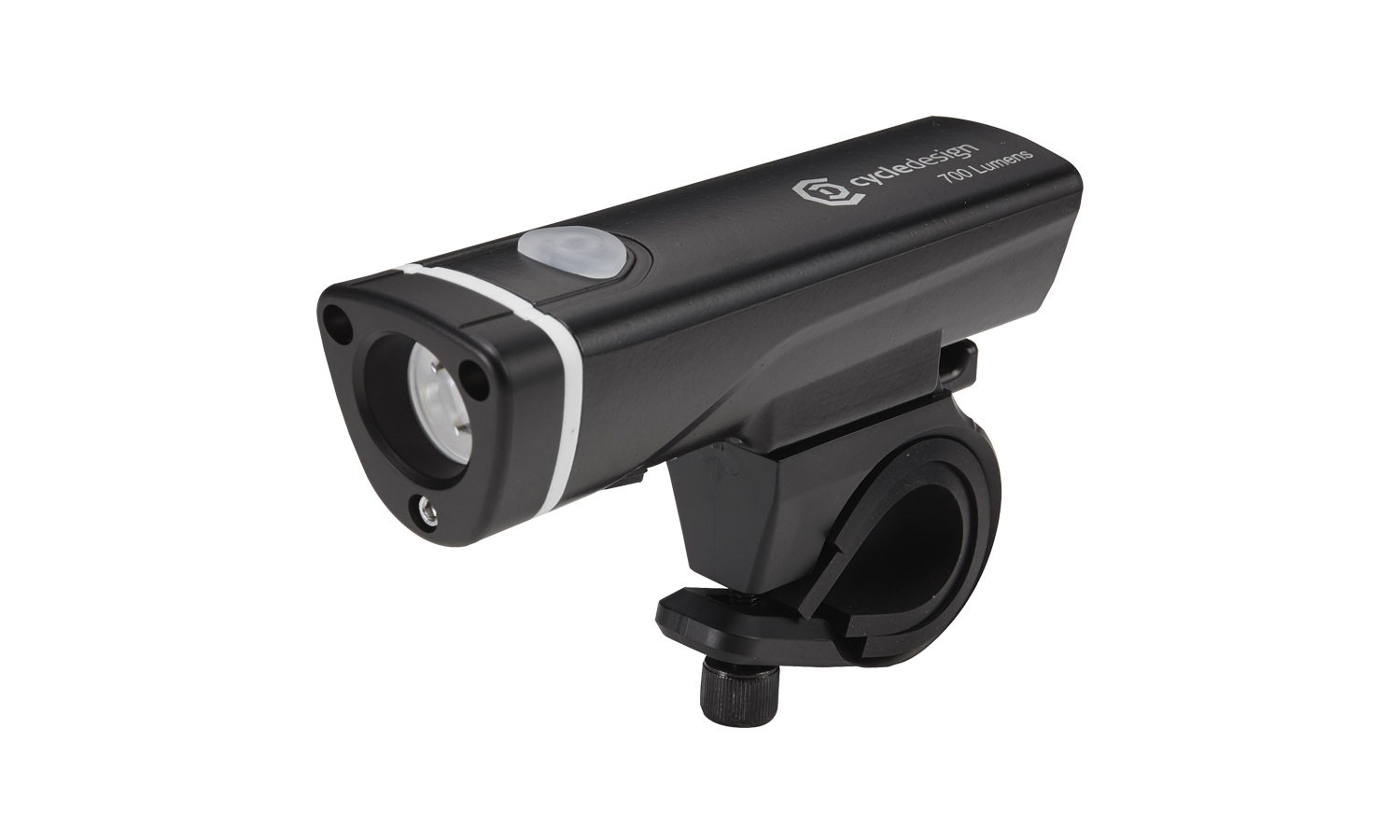

  • CDLT0165 - Black
  • CDLT0166 - White

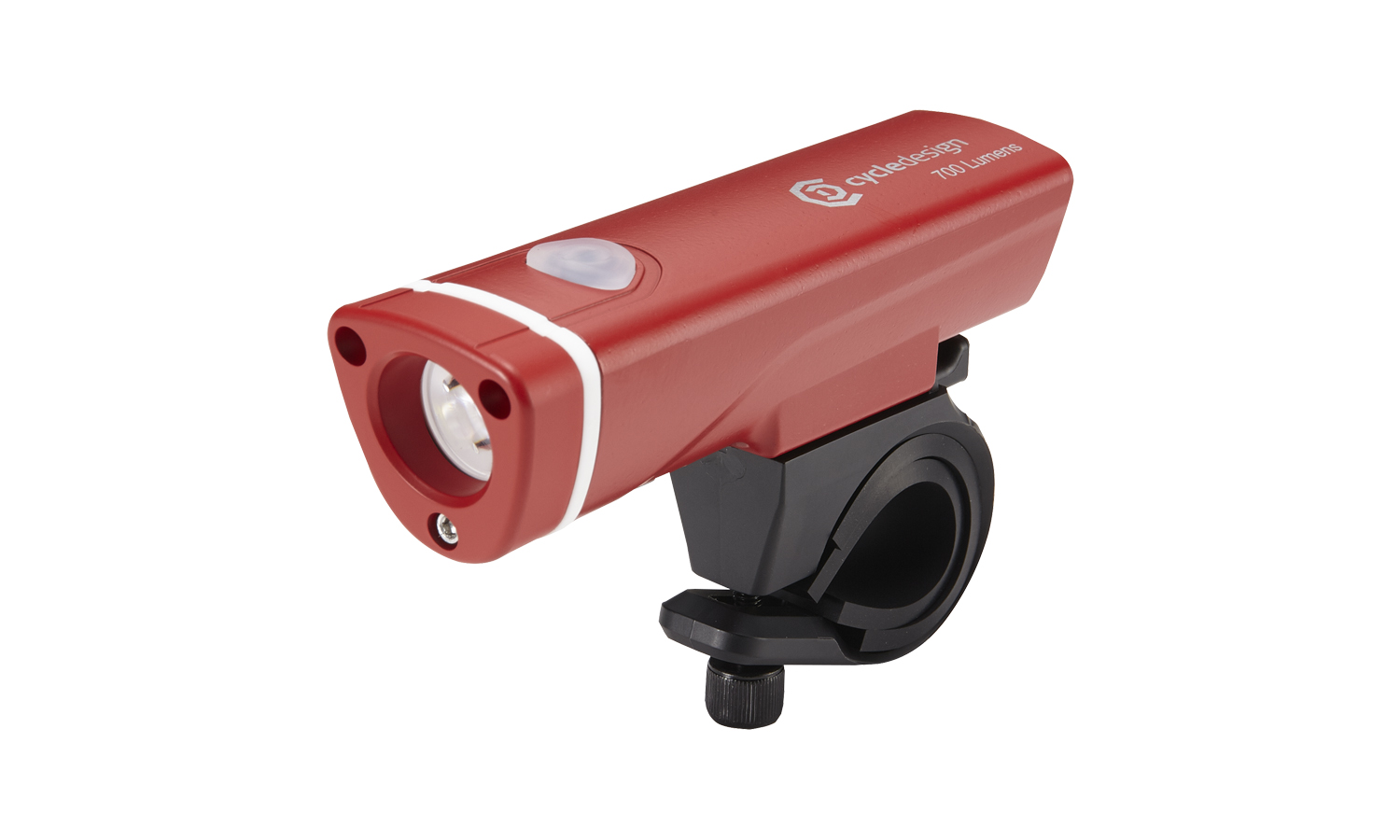

  • CDLT0167 - Red
  • CDLT0165 - Black
  • CDLT0166 - White
  • CDLT0167 - Red
The cycledesign BrightBar LM-700. is a high powered 700 Lumens bicycle front light,


with Three-mode beam with a LED front output, equipped with the strongest CREE LED

lamp bulb that the optical enhancenments max throw irradiation distance is up to 150

meters, it's useful and increasing visibility to improve the riding at night.



Made of aluminum case has certified waterproof IPX4 with high power rechargeable


battery to support strong CREE LED bulb, built in 2900mAh rechargeable 18650 battery

by Micro-USB
cable interface input high-current recharging capability ensuring longer

runtime and
reliable performance. Integral aluminum construction with quick release

bracket mount compatible for handlebar max siezs
ø31.8mm, and the metal case

ensure
temperature control circuit design allowing for effective LED bulb durability and

heat
dissipation performance.

Multi-Purpose headlight modes option designed for brightness, two hight-brightness

lighting modes and one
 flashing mode alerts drivers to your presence.

Equipped the Micro-USB rechargeable outpurt via any standard USB port

(charging is Red light), and when the battery capacity is less
than 10%, the buttum will

flash blue light to alert rider and also to extend t
he battery power.


Material : Aluminum


Max Brightness : 700 Lumens

18650 Battery Type : Lithium Ion 3.7V 2900 mAh (Rechargeable)

Charge Time : 7 hrs by Micro-USB (DC5V / 1A)

Bulb : CREE LED * 1 pc



Light Modes / Lumens : Low Beam / 300 lm    High Beam / 700 lm    Flashing / 700 lm

Max RunTime :              3 hrs                         1.5 hrs                       7 hrs



Included Micro-USB Cable * 1 pc

Bracket : Handlebar mount maximum size
ø31.8 mm

Size : 105 * 33 * 28 mm

Weight : 123 g

Certified Weightproof IPX4

Mode Memory Fucntion

Feature : cycledesign logo / Made In Taiwan

 High power light brightness of 700 lumens, up to 150 meters illuminating

 High power battery 18650 to suport strongest CREE LED bulb

 Lightweight aluminum case with good heat dissiption with versatile lighting mode for

    safe riding

 Painted finishes multi colors option and otpimal quick release bracket mount various

    handlebar sizes


Item :               Finish :

CDLT0165          Painted Black

CDLT0166          Painted White

CDLT0167          Painted Red
