AHEAD UpRise RS6. Stem-CDHS0011 / CDHS0012 / CDHS0013 / CDHS0014 / CDHS0015 / CDHS0016
  • Angle 6°

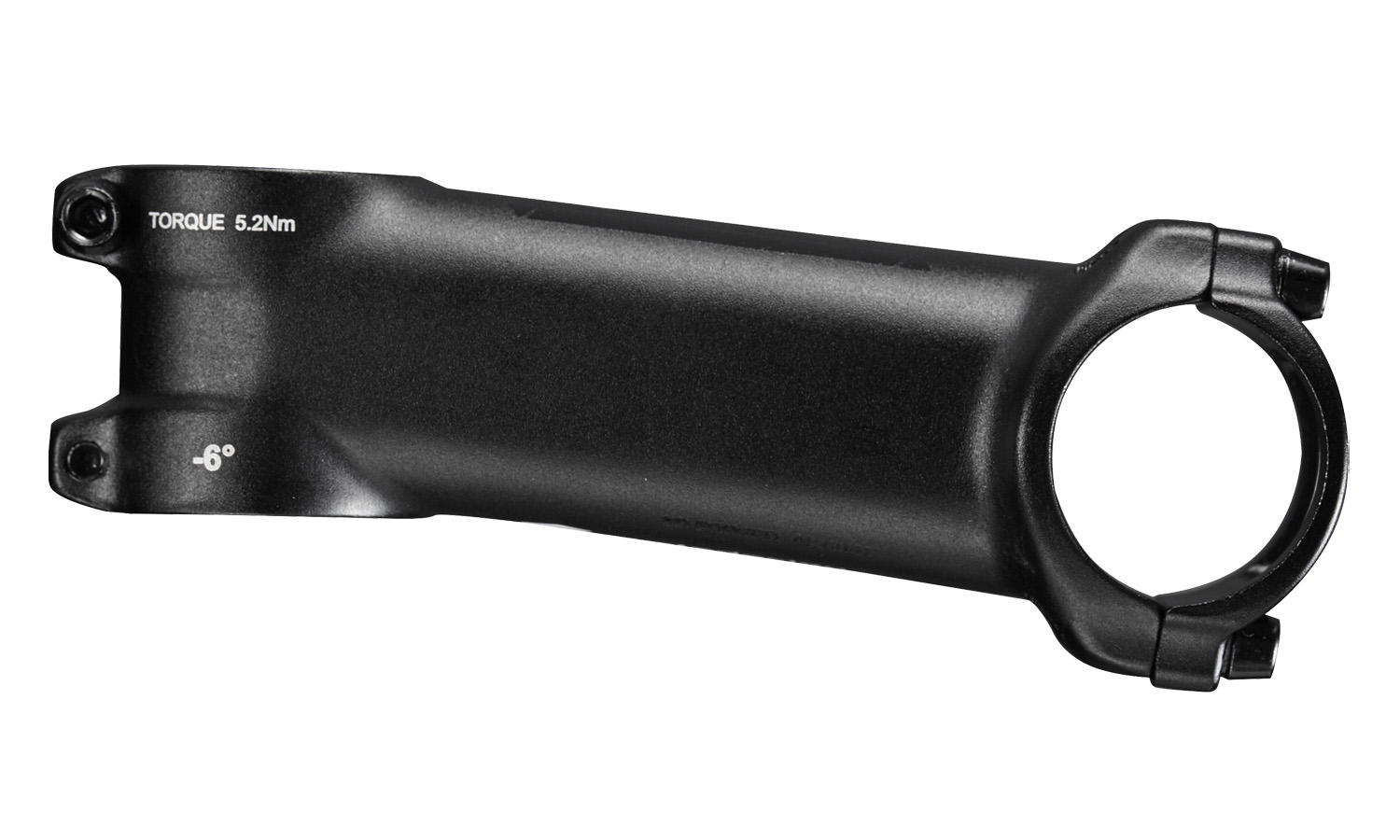

  • Angle -6°
  • Angle 6°
  • Angle -6°

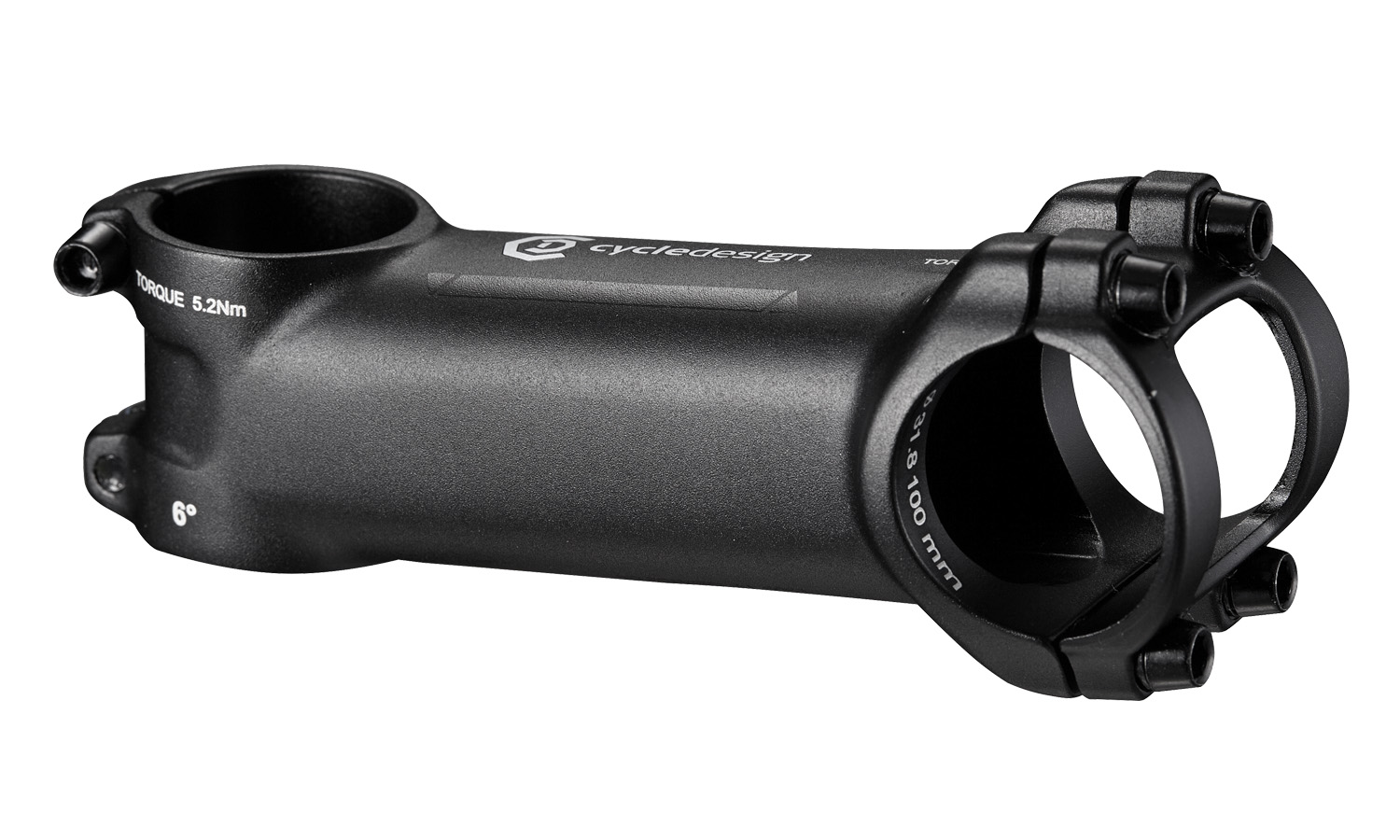

The cycledesign AHEAD UpRise RS6. Stem has a 3D-forged aluminum construction and

an inclination 6°, with an integrated 4-bolts removable face plate for the ø31.8mm

diameter clamp to take a firm fitting on handlebars.


Constructed of heat treated 6061-T6 aluminum, seamlessly processed with hollow

design, high-strength and high impact resistance to create the strongest, lightest, and

certified for ISO4210.

Featuring from matte sandblasted finished and galvanized black with Loctite applied

threads.


The clamp height of stem has a 37mm heigh and needs to reserve a spacer to be fixed

into the threadless steerer tube and is mounted directly on the steerer tube.





Material : Aluminum 6061-T6

Fork Steerer Tube : 1-1/8"

Type : Threadless

Stem Angle : 6°

BarBore Diameter : ø31.8 mm

Clamp Height : 37 mm

Finish : SandBlast Black

Feature : cycledesign graphic / Made In Taiwan

 Made of 3D-Forged aluminum structure is ultra-light to work strong and durable

 All metal hardware is reliable and tough

 Certified to use on all mountain bikes and E-Bikes

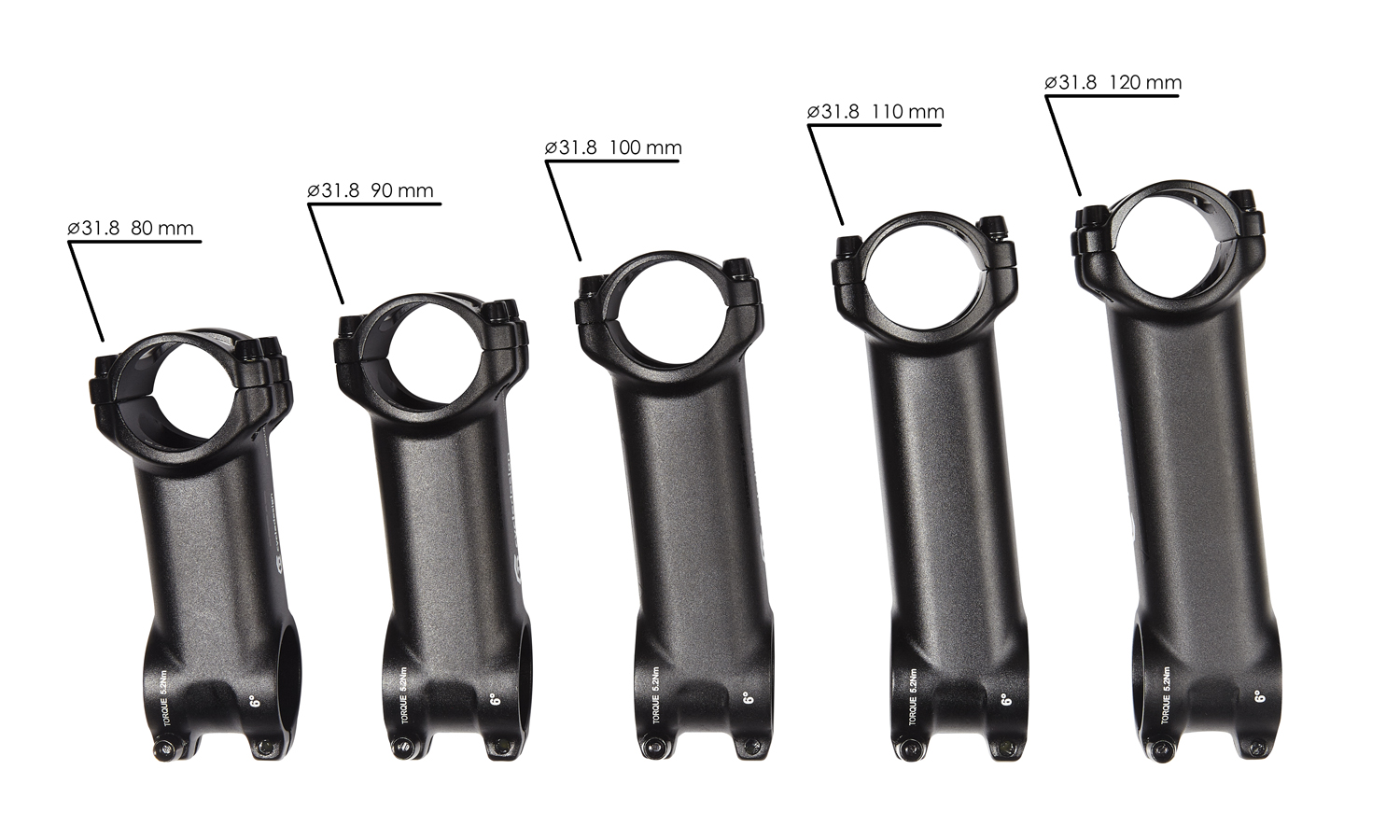

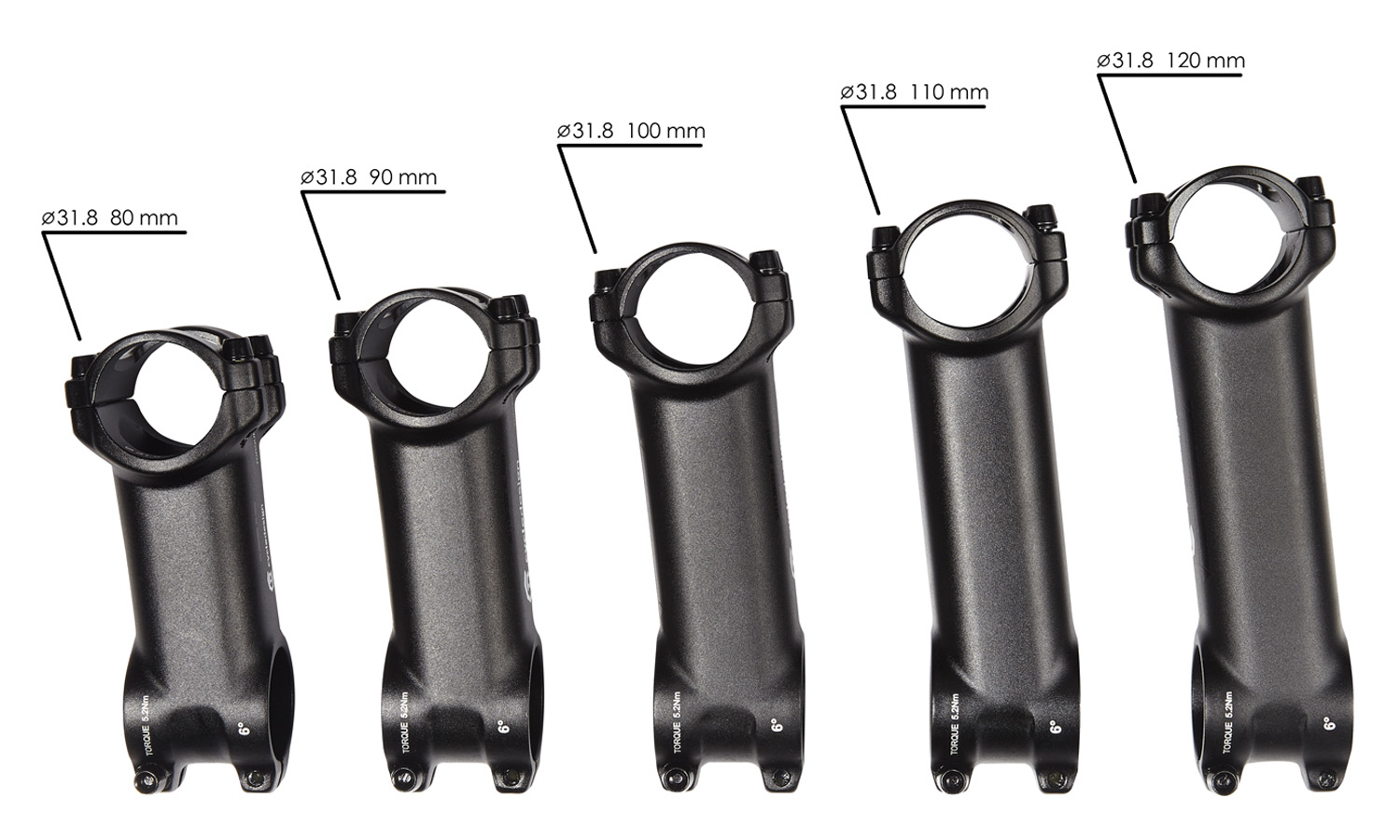

 Versatile length to choose for fitting various body types in available



Item :                Length :

CDHS0011          80mm            118g

CDHS0012          90mm            127g

CDHS0013          100mm          130g

CDHS0014          110mm          138g

CDHS0015          120mm          140g
