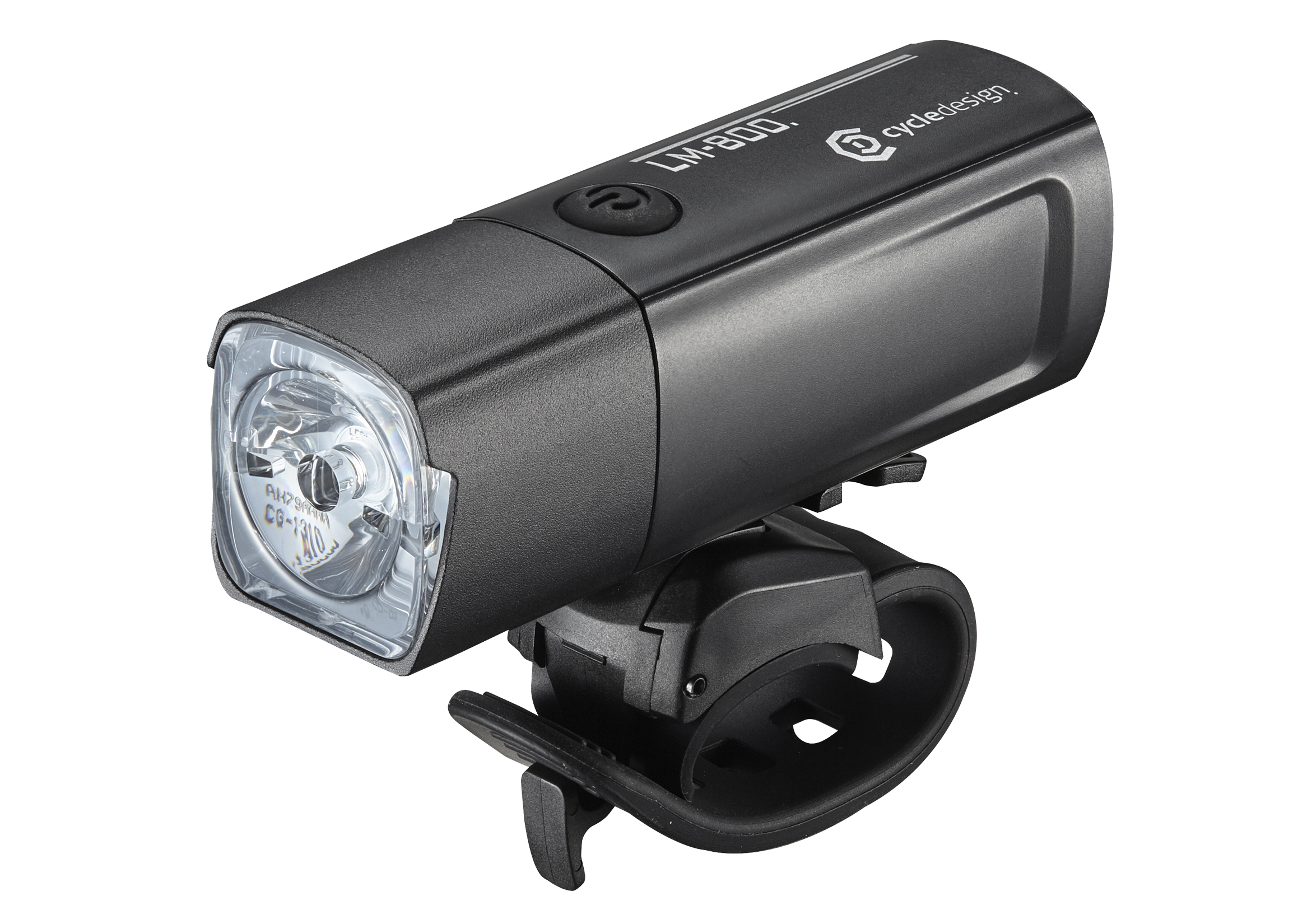

BrightBar LM-800.-CDLT0186
The cycledesign BrightBar LM-800. is a high powered 800 Lumens bicycle front light,

with Five-mode beam with a LED front output, optical enhancements also increase side

visibility.


Made of aluminum case has certified waterproof IPX5 with high power rechargeable

battery to support bright bulb, crafted form brightness lighting with enhancement and

optical increasing visibility for safe riding, built in 2600mAh rechargeable by Micro-USB

cable interface input high-current recharging capability ensuring longer runtime and

reliable performance.

While the aluminum construction with cooling fins ensures temperature control circuit

design allowing for effective LED bulb durability and heat dissipation performance.

Multi-Purpose headlight modes option designed for brightness, three lighting modes and

two flashing modes alerts drivers to your presence, when the battery capacity is less

than 10%, the light will automatically switch to low beam or flashing mode to extend

the battery power.

In addition, it except benefits from various modes function, and it has a memory mode

design, when you turn the light on, it lights up in the last lighting mode you need.

The strap bracket is installed to versatile handlebar sizes and has an exclusive 180
°

rotatable light angle.


Material : Aluminum


Max Brightness : 800 Lumens

Battery Type : Lithium Ion 2600 mAh (Rechargeable)

Charge Time : 6 hrs by Micro-USB (DC5V / 0.5A)

Bulb : High power LED * 1 pc


Light Modes / Lumens : Low Beam / 200 lm    Mid Beam / 400 lm    High Beam / 800 lm

Max RunTime :              6.5 hrs                      4 hrs                        2.5 hrs
           1.5 sec.           DayTime / 800 lm                  Flashing / 100 lm
OFF                            12 hrs                                   20 hrs




Included Micro-USB Cable * 1 pc

Strap Bracket : Handlebar mount
ø19mm ~ ø40mm / Rotatable 180°

Size : 99.6 * 31 * 32 mm

Weight : 103 g

Certified Waterproof IPX5


Memory Mode Function

Color : Power Coating Anodized Black

Feature : cycledesign logo / Made In Taiwan

 High power battery and super lighting brightness of 800 lumens, up to 100 meters

    illuminating

 Automatic power save to increase

 Extend on sides of lampshape enhances the side visibility and an exclusive 180
°


    retatable light angle

 Lightweight aluminum case with good heat dissiption with versatile lighting mode for

    safe riding
