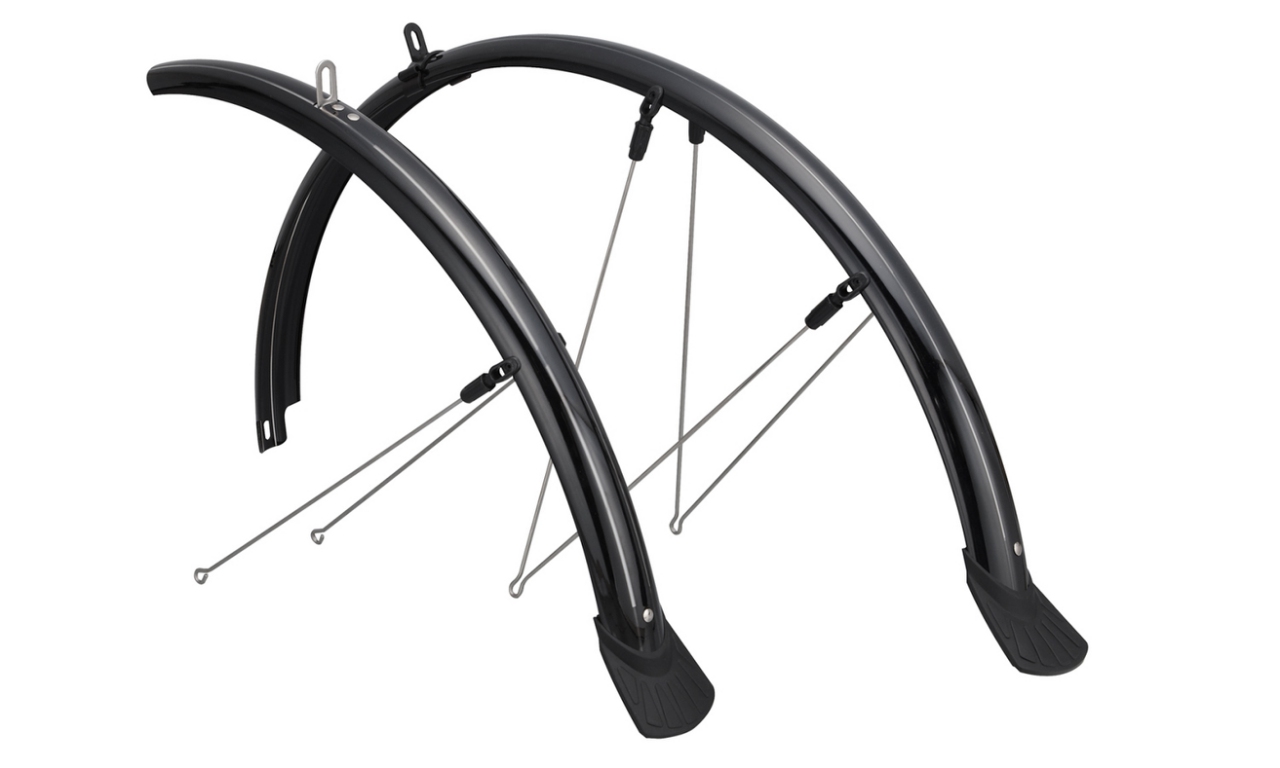

Tour-Guard City Mudflap MG3. Fender Set-CDMG0005 / CDMG0006 / CDMG0007
-
You can find the table to satisfy your needs.
-
CDMG0005-24
-
Safety QR fatener, for ø3.2 / ø4 mm fender - stay
-
-
You can find the table to satisfy your needs.
-
CDMG0005-24
-
Safety QR fatener, for ø3.2 / ø4 mm fender - stay
-
cycledesign Tour-Guard Mudflap MG3 擋泥板套裝採用全覆蓋式設計，
加寬了弧形輪廓，並在肩部
外觀上增加了額外的擋泥板尾部。
加寬了弧形輪廓，並在肩部
外觀上增加了額外的擋泥板尾部。
為了滿足城市自行車輪胎的需求，並涵蓋適合各種車輪尺寸的範圍，
cycledesign Mudflap MG3 型號採用了更寬的肩部形狀，包括燕尾狀
外觀，可以有效防止泥沙飛濺，遠離泥漿和
雨水。
cycledesign Mudflap MG3 型號採用了更寬的肩部形狀，包括燕尾狀
外觀，可以有效防止泥沙飛濺，遠離泥漿和
雨水。
它適用於寬度達 45 毫米的輪胎，最大尺寸為
700c x 35c 的城市自行車輪胎。
700c x 35c 的城市自行車輪胎。
Equipped with a Fix-In hanger and stainless steel fender struts and with grommet

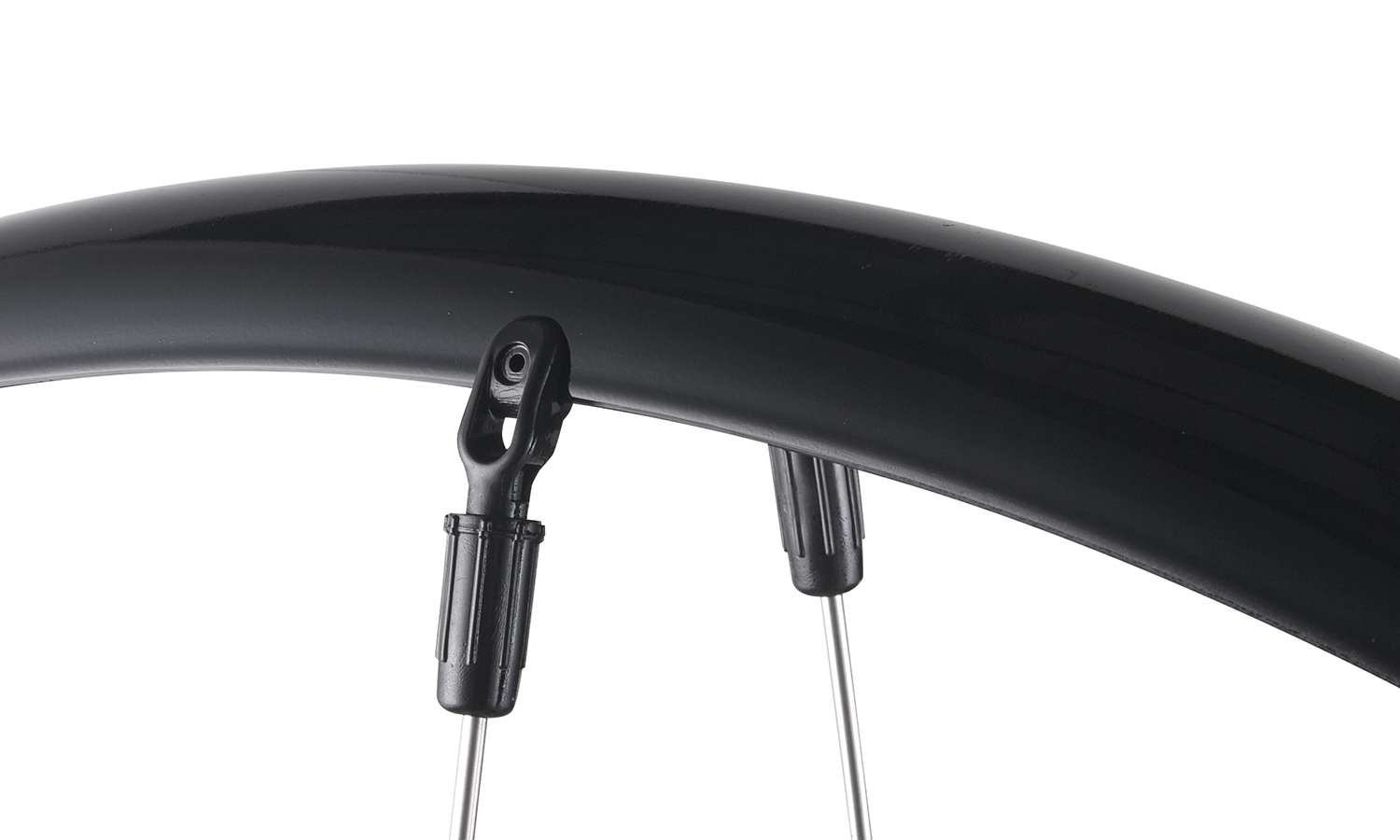

Safety POP-OFF3 Quick-Release applicable to quick adjust length, it can fit the gap
perfect between tire and mudguard.
Safety POP-OFF3 Quick-Release applicable to quick adjust length, it can fit the gap
perfect between tire and mudguard.
It's made from lightweight thermoplastic material and more simple installation.
All the metal hardware is stainless steel finished material for durability and anti-rust.
Front mudguard, equipped with the immobile FixIn hanger and stainless steel struts
hardware included, it's fastened into fork's hole and the fender struts are installed on
fork's eyes.
hardware included, it's fastened into fork's hole and the fender struts are installed on
fork's eyes.

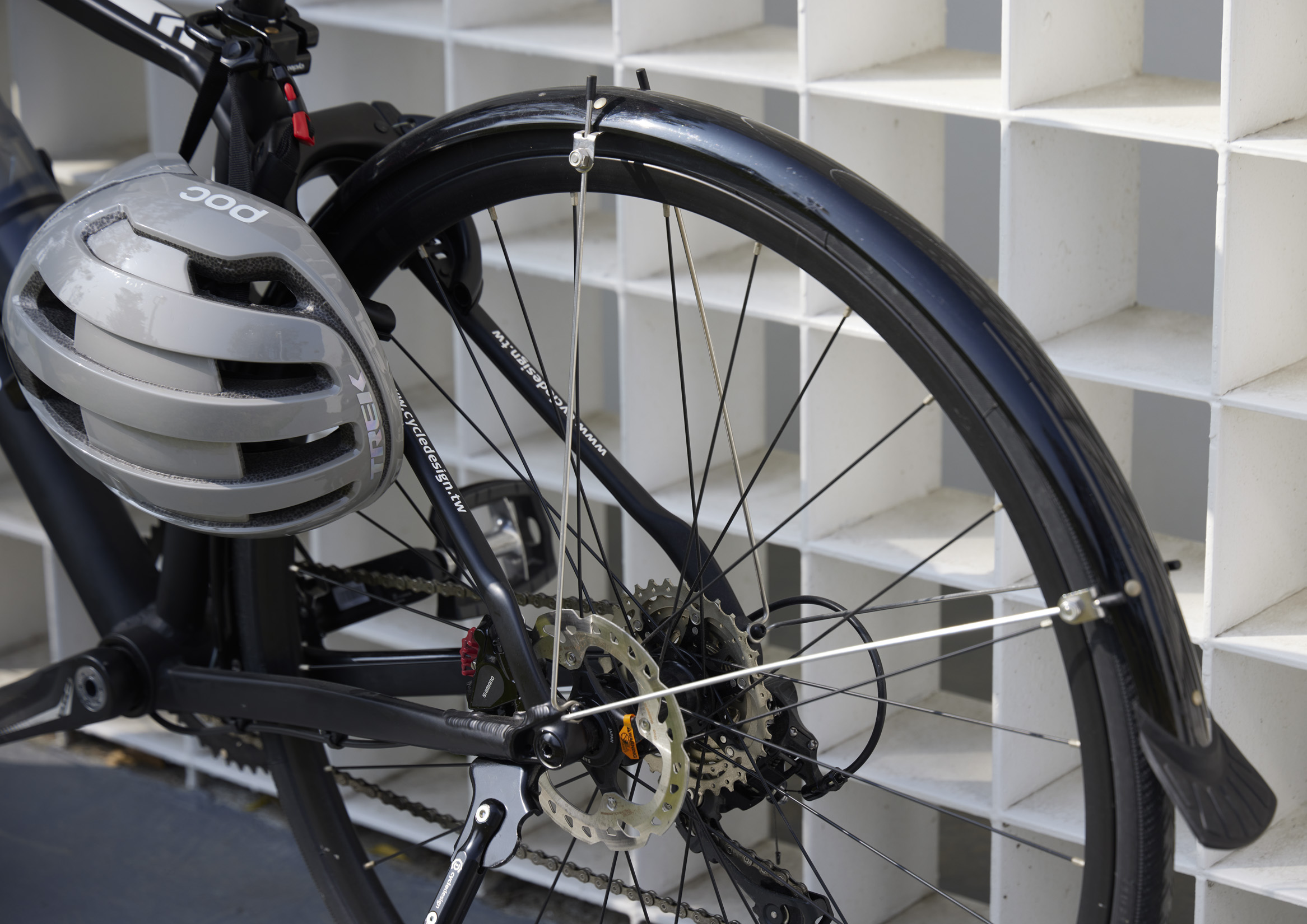

Rear mudguard, attached the removable hanger connector shoulder to be installed in
the bridge, and stainless steel struts hardware included, it's fastened and mounted into
bridge, and the fender struts are installed on the seatsatys of frame.
the bridge, and stainless steel struts hardware included, it's fastened and mounted into
bridge, and the fender struts are installed on the seatsatys of frame.
Material : PC / Aluminum / Stainless steel
Suitable For Tire Widths : Maximum 1.125" ~ 1.375" / 28c ~ 35c
Mudguard Width : 45 mm
Included stainless steel bolt metal hardware / Fender tail
Stainless steel fender struts / Safety POP-OFF3 system
FixIn hanger in front / SlideIn hanger in rear
Suitable For Tire Widths : Maximum 1.125" ~ 1.375" / 28c ~ 35c
Mudguard Width : 45 mm
Included stainless steel bolt metal hardware / Fender tail
Stainless steel fender struts / Safety POP-OFF3 system
FixIn hanger in front / SlideIn hanger in rear
Color : Black
Feature : cycledesign logo / Made In Taiwan
.png)
More wider curved shape profile with tail in a shoulder designed
Stainless steel fender struts combined with Safety POP-OFF3 system for adjustablelength

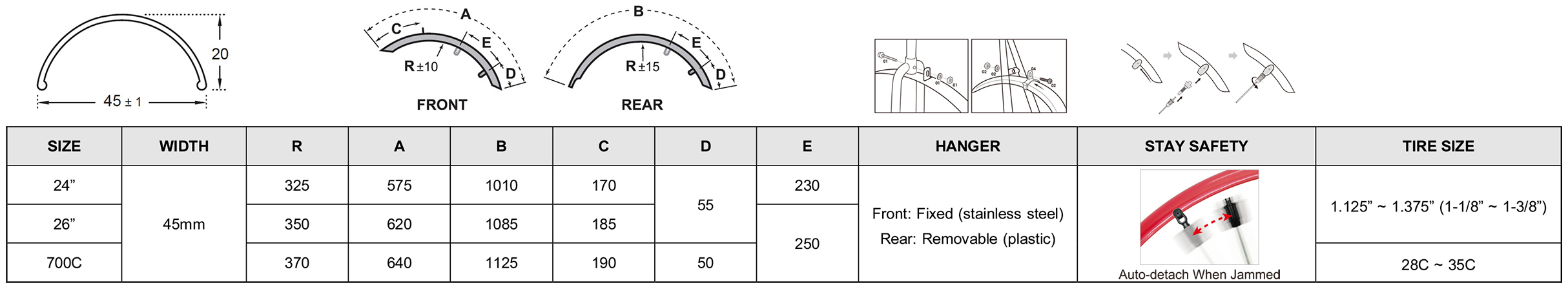

FixIn / SlideIn hanger fasteners to be fixed in front fork's hole and bridge of frame All metal hardware is stainless steel material finish for durability and anti-rust Item : Wheel Size : Length Fender Size :
CDMG0005 24" Bike F : 575 mm / R : 1010 mm
CDMG0006 26" Bike F : 620 mm / R : 1085 mm
CDMG0007 700C F : 640 mm / R : 1125 mm
